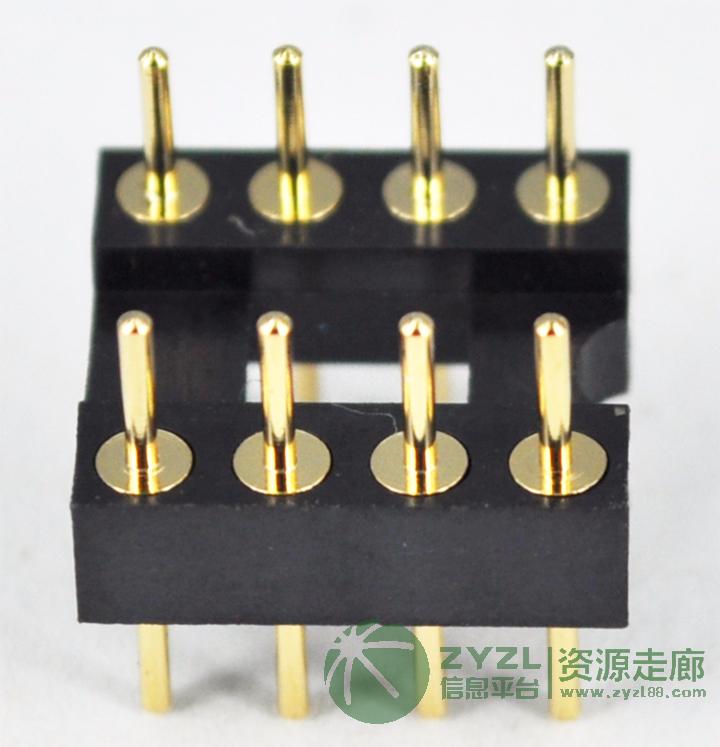

圆孔IC插针连接器 H=3.00 L=10.00mm

Technical Data
Materlal:
Pin(outer sleeve):Brass,machined CuZn38Pb2
Plating(outer sleeve):
Tin Plated:2μm/80μ"NI,5μm/200μ"Sn
Gold Plated:2μm"/80μ"Ni,0.8μ" gold
Insuiator:PBT UL94V-0

Electrical:
Current rating:3Amps/contact max.
Contact resistance:≤4mΩ/contact
Insuiation resistance:≥1000MΩ at V=100V
Dleiectric Withstanding Voltage:1000V AV Min
Operaling voitage:60VAC/DC

Mechanical:
Operaling temperature:-40°C to+105°C
Soldering temperature:+255°C
