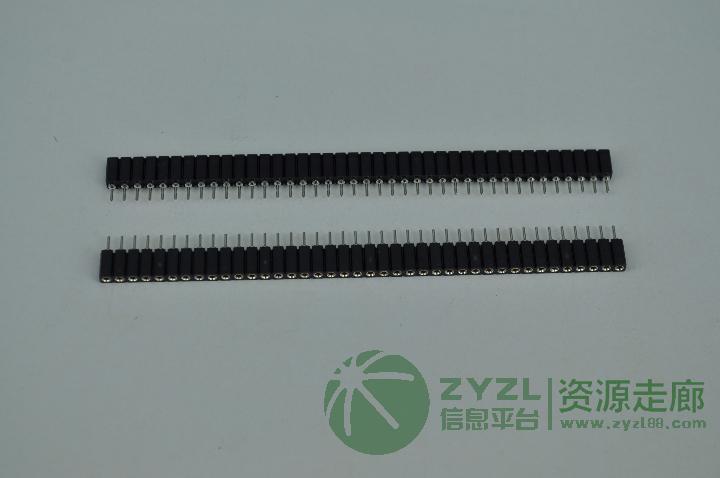

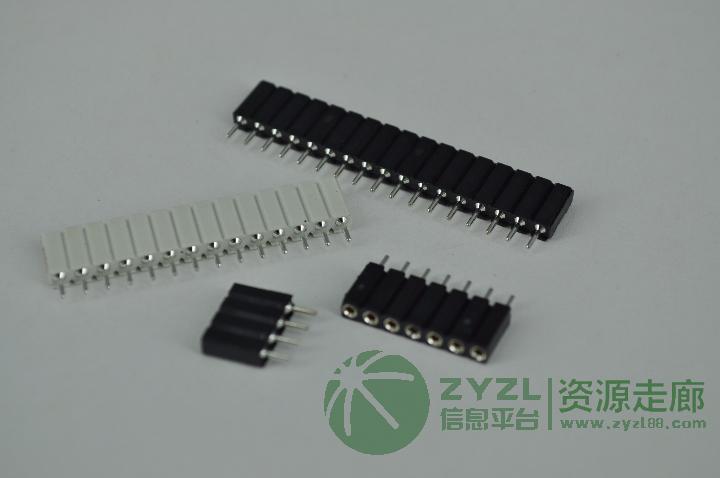

圆孔排母2.54mm H=7.00 L=10.0mm/单排

Technical Data
Materlal:
Pin(outer sleeve):Brass,machined CuZn38Pb2
Plating(outer sleeve):
Tin Plated:2μm/80μ"NI,5μm/200μ"Sn
Gold Plated:2μm"/80μ"Ni,0.8μ" gold
Plating(Contact ):2μm/80μ"NI,gold or Tin plated
Insuiator:PPS UL94V-0
Cllp(Contact 6 Flnger):Beryllium copper,heat teated

Electrical:
Current rating:3Amps/contact max.
Contact resistance:≤4mΩ/contact
Insuiation resistance:≥1000MΩ at V=100V
Operaing voitage:60VAC/DC

Mechanical:
Average Insertion force with steel pin of ∅0.66:＜140g
Average withdrawal force with steel pin of ∅0.66:＞25g
Mechanical lige cycle:min 200
Operaling temperature:-40°C to+105°C
Soldering temperature:+255°C
