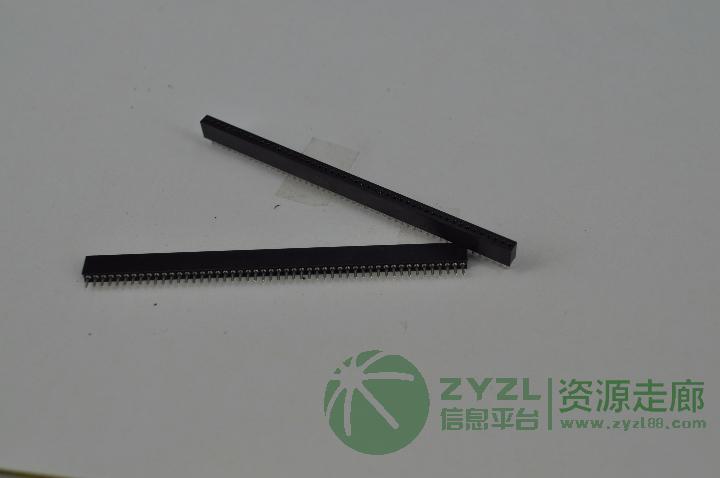

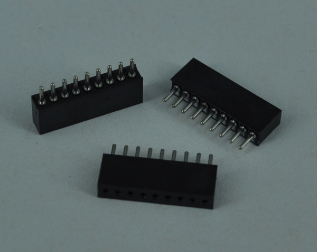

圆孔排母1.27mm H=4.10 L=6.40单排

Technical Data
Materlal:
Pin(outer sleeve):Brass,machined CuZn38Pb2
Plating(outer sleeve):
Tin Plated:2μm/80μ"NI,5μm/200μ"Sn
Gold Plated:2μm"/80μ"Ni,0.8μ" gold
Plating(Contact ):2μm/80μ"NI,gold or Tin plated
Insulator:PPS UL94V-0
Cllp(Contact 6 Flnger):Beryllium copper,heat teated

Electrlcal:
Current rating:1Amps/contact max.
Contact resistance:Max 20mΩ
Dleiectric strength:Min 500V RMS
Operaling voltage:60VAC/DC

Mechanical:
Average Insertlon force with steel pin of ∅0.66mm/0.381":＜60g
Average withdrawal force with steel pin of ∅0.66mm/0.381":＜15g
Mechanlcal lige cycle:min 500
Operaling temperature:-40°C to+105°C
Soldering temperature:+255°C
